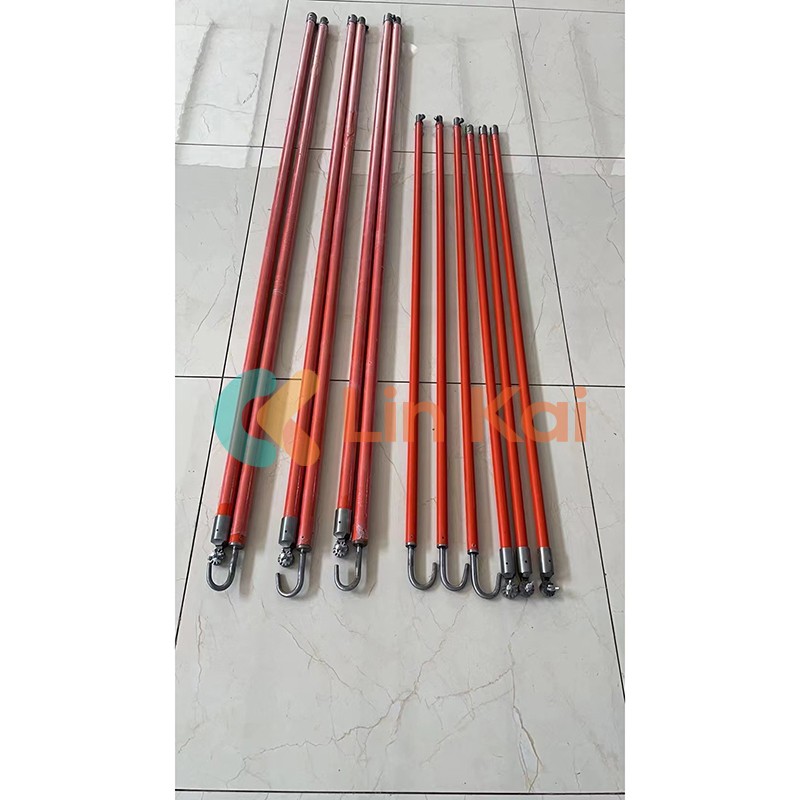

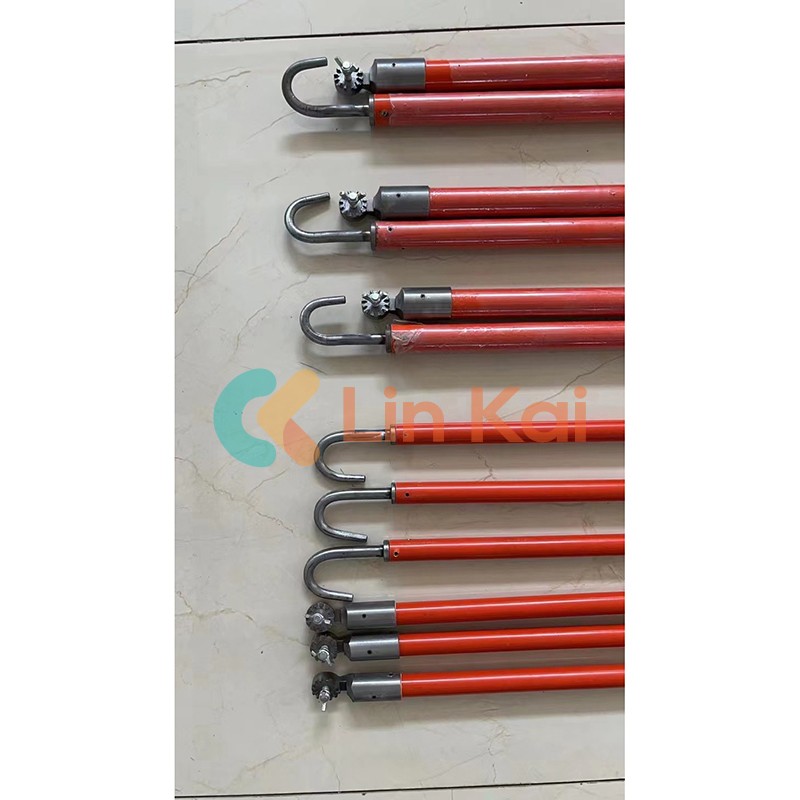

Portable Short Circuit Grounding Pole

Tuku tiang grounding sirkuit pendek portabel saka Ningbo Lingkai. Kita kudu ngerti dawa rod, bagean, situs operasi voltase, lan dawa kabel tembaga, lan kita uga bisa ngatur ukuran clip pungkasan grounding mbukak. Kustomisasi Earth Wire Safety Grounding Rod digawe dening Ningbo Lingkai Manufaktur, kabeh kabel tembaga saka China standar resmi tanduran bahan baku

Kirim Pitakonan

Deskripsi Produk

Kutub grounding hubung singkat portabel Lingkai duwe jinis Flat Clipper Jaws lan jinis Opening Arc. Iku seng di pengeni kanggo baris transmisi listrik lan cocok kanggo tembaga lan aluminium baris bus bar uga kabinèt ngalih.

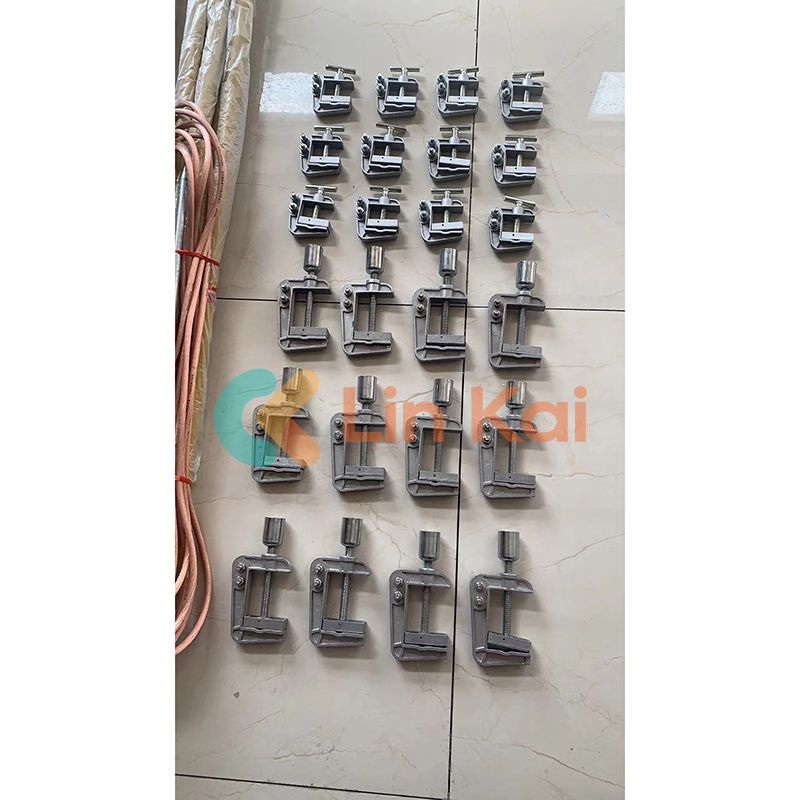

Pole grounding sirkuit cendhak portabel, clamper kabel, digawe karo casting alloy aluminium kanggo kekuatan dhuwur, konduktivitas apik, lan gampang nindakake lan transportasi. Kanggo nyedhiyakake timbal grounding sing paling cocog kanggo klien. Priksa manawa kanggo menehi kita 1. Tegangan situs operasi 2 dawa rod, 3 bagean rod, 4 grounding klip pungkasan mbukak ukuran, 5 ukuran tembaga, 6 dawa tembaga Iki kabeh bisa selaras.

Kelas voltase	Ground kabel tembaga alus		Dawane Ground Operation Rod (mm)
	(mm2)	(m)	Dawane Ground Operation Rod (mm)
	(mm2)	(m)	Isolasi	Handheld	Total dawa
10KV	25	13+7~1.53+20	700	300	1000
35KV	25	1,5*3+18	900	600	1500
68kv	25	1,5*3+20	1000	600	1600
110KV	25,35	9*3	1300	700	2000
110KV	25,35	2*3+20	1300	700	2000
220KV	25,35	9*3	2100	900	3000
220KV	25,35	3*3+25	2100	900	3000
330KV	35,50	123 43+25	3000	1100	4100
500KV	35,50	133~203	4100	1400	5500
220-500KV kabel ground overhead	25	13+7~1.53+20	700	300	1000
Peralatan uji tekanan dhuwur	35,50	53~103	700	300	1000

Nilai dirating saka kabel tembaga saben meter:

Area bagean (mm)	10	16	25	35	50	70	95	120
Diameter kawat (mm)	4.2	5.7	7.5	8.78	11	12	16	17
Diameter sarung (MΩ)	7.3	7.8	9.6	11.2	12.6	16.5	21	22
Nilai Resistance (A)	1.98	1.24	0.79	0.56	0.4	0.28	0.21	0.16
Arus safety	90	100	123	150	210	238	300	300

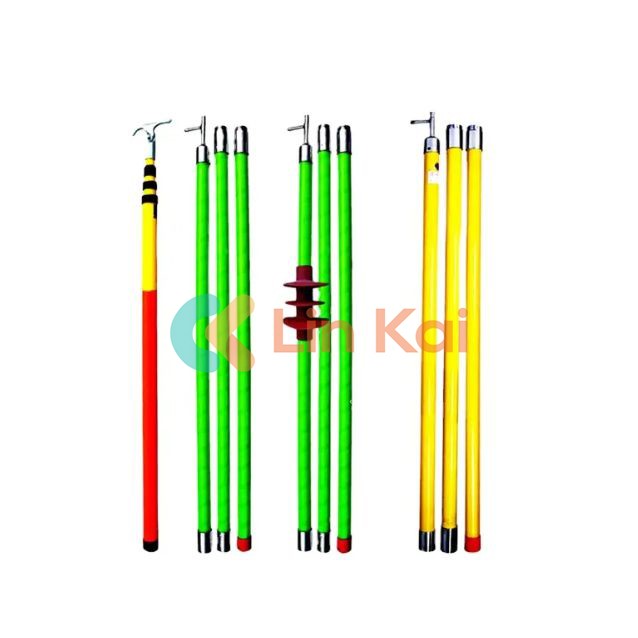

Grounding Pole (Grounding End Clip)

kutub grounding iki nerangake karo nomer item 23051, lan klip mburi grounding duwe nomer item 23055. Padha bisa digunakake ing kerjasama karo pole grounding short circuit hotspot.

Katrangan

Nomer Item	jeneng	Migunakake
23051	pole grounding	Bisa digunakake kanthi kerjasama karo kutub grounding sirkuit cendhak portabel.
23055	klip pungkasan grounding
23056	Grounding mburi bunder	Bisa disesuaikan
