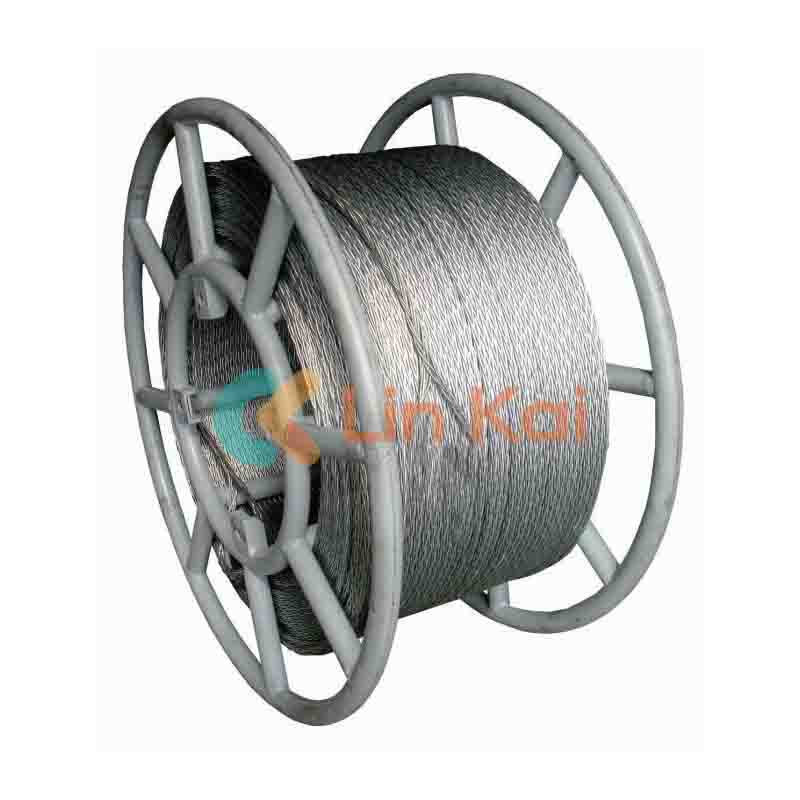

16MM Anti Twist Steel Wire Rope kanggo Two Bundled Konduktor Stringing

Pabrik Lingkai awet 16mm Anti Twist Steel Wire Rope for Two bundled conductors stringing is commonly used for mechanical traction and tension release conductors. Iki 16MM Anti Twist Steel Wire Rope kanggo Two bundled konduktor stringing bisa digunakake minangka tali traksi utawa tali guide. Desain anti-twist khusus bisa nambah efisiensi, nyedhiyakake dhukungan sing dipercaya lan padhet kanggo jalur transmisi tegangan ultra-tinggi, lan bisa nangani konduktor sing luwih gedhe sing mbutuhake traksi sing luwih gedhe.

Kirim Pitakonan

Deskripsi Produk

Anti-twisting braided tali kawat baja Aplikasi:

Pabrik Lingkai Awet 16MM Anti Twist Steel Wire Rope for Two bundled conductors stringing is commonly used in mechanical pulling and tensioning release of conductors as either a pulling force or leading rope. Desain anti-twisting khusus penting kanggo nambah efisiensi lan njamin karya stringing saluran transmisi overhead sing luwih aman.

Utamane, 16MM Anti Twist Steel Wire Rope kanggo Two konduktor bundled stringing digunakake digunakake ing industri transmisi daya kanggo narik konduktor siji utawa OPGW ing baris transmisi nduwur sirah. Kajaba iku, dheweke nawakake dhukungan sing dipercaya lan kuat kanggo saluran transmisi super dhuwur, sing bisa nangani konduktor sing luwih gedhe sing mbutuhake daya luwih akeh kanggo narik.

Kaluwihan nggunakake 16MM Anti Twist Steel Wire Rope kanggo Two konduktor bundled stringing ing aplikasi transmisi daya cetha. Tali khusus iki bisa nyilikake downtime sing disebabake dening twists kawat lan tangles, lan mbantu njamin proses instalasi sing cepet, efisien, lan larang.

12 Strands Anti twisting braided tali kawat baja

Item No.	diameteripun nominal	Beban putus (KN)	Diameter utas tunggal (mm)	T/S Normal (N/mm²)	Bobot Net (kg/1000m)
18201A	9 mm	50 kN	2,0 mm	1960	250
18202A	10 mm	70 kN	2,3 mm	1960	356
18203A	11 mm	85 kN	2,5 mm	1960	410
18204A	12 mm	100 kN	2,7 mm	1960	510
18205A	13 mm	115 kN	3,0 mm	1960	620
18206A	14 mm	130 kN	3,2 mm	1960	710
18207A	15 mm	143 kN	3,3 mm	1960	770
18208A	16 mm	160 kN	3,5 mm	1960	800
18209A	18 mm	206 kN	4,0 mm	1960	1060
18210A	19 mm	236 kN	4,3 mm	1960	1210
18211A	20 mm	266 kN	4,5 mm	1960	1310
18212A	22 mm	313 KN	4,8 mm	1960	1500
18213A	24 mm	342 KN	5,0 mm	1960	1650
18214A	26 mm	400 KN	5,4 mm	1960	1950
18215A	28 mm	462 KN	6,0 mm	1960	2020
